Power Cords
This product is commonly used for motors with the following voltages:
220V ... (50Hz, 60Hz).
230V ... (50Hz, 60Hz).
240V ... (50Hz, 60Hz).
The above three voltages are universal for this product.
Single-phase 220V soft start module use range:
Petroleum, chemical, fire, construction, metallurgy, building materials, mining, environmental protection and other fields.
Fans, pumps, belt conveyors, ball mills, car washing machines, conveyors and compressors.
It is an ideal replacement for traditional star/delta conversion, auto-coupling , magnetic control , inverter and other step-down starting devices.

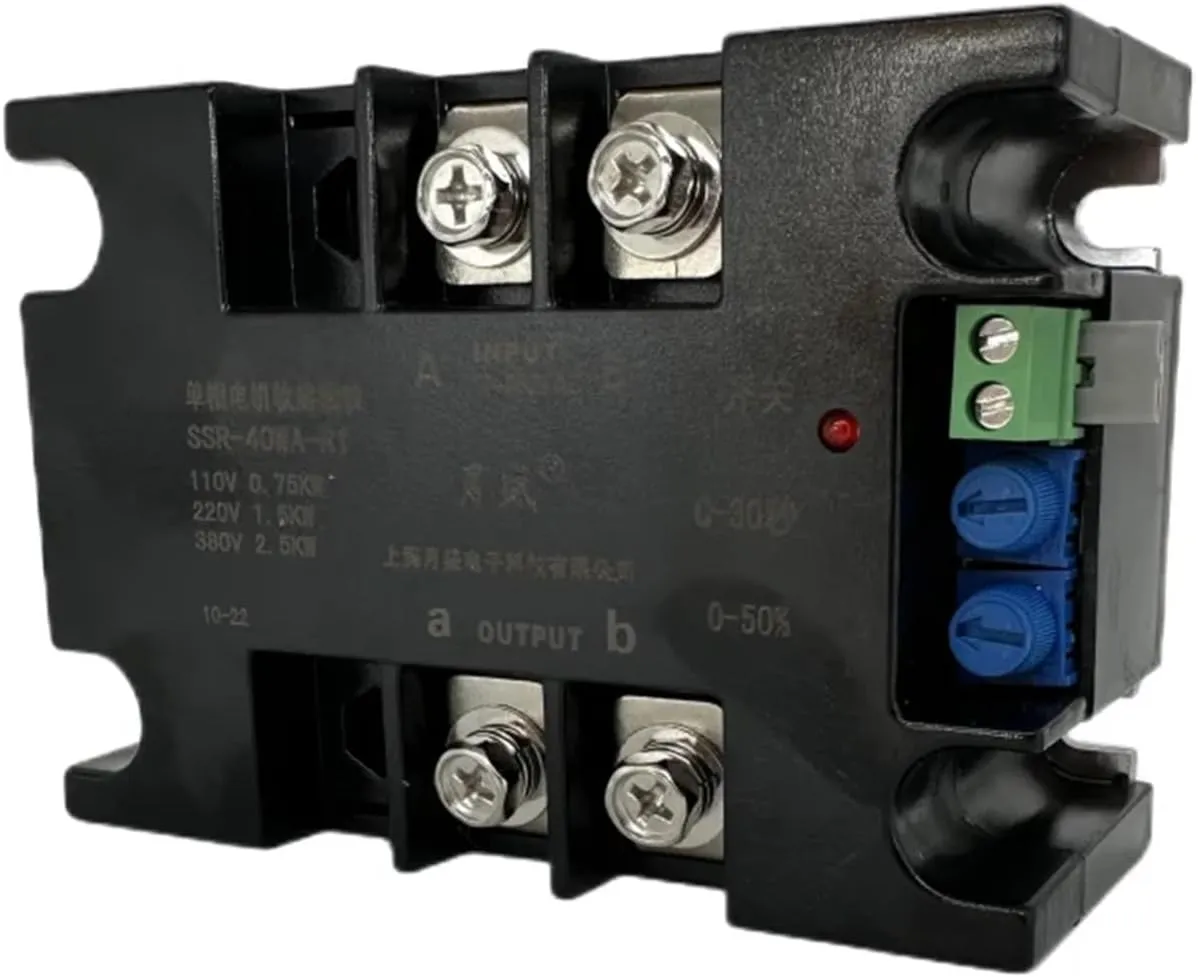

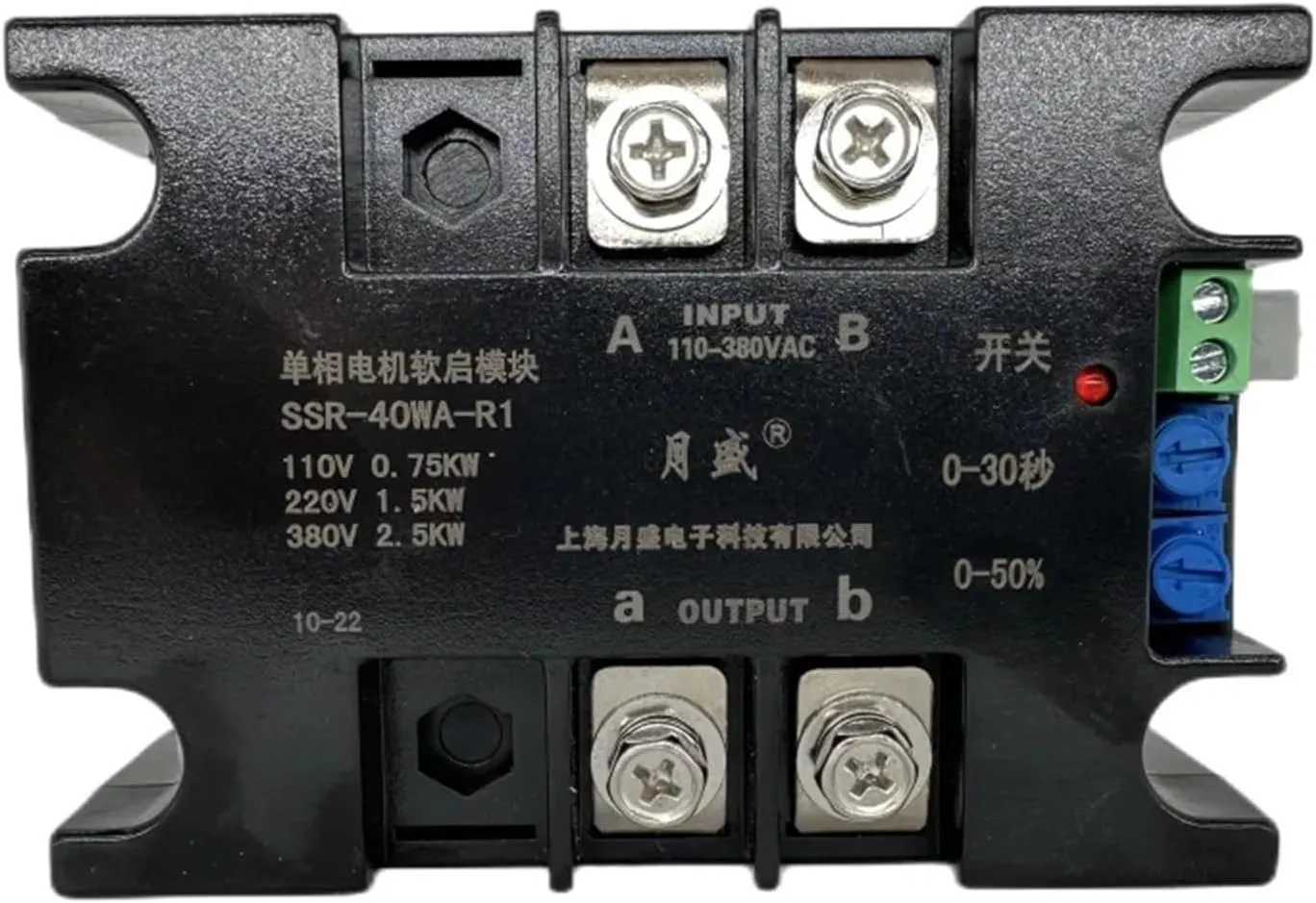

220V single-phase motor soft start module (motor conversion method)
220V single-phase motor soft start module (motor conversion method)
model:
SSR-20WA-R1 (1kw)
SSR-40WA-R1 (1.5kw)
SSR-60WA-R1 (2kw)
SSR-100WA-R1 (4kw)
SSR-150WA-R1 (6kw)
SSR-200WA-R1 (8kw)
According to the actual working current 5 times: power ÷ voltage × 5
in case:
Your motor is 8000w power ÷ 220v voltage × 5 = (181.81WA should choose 200WA) should choose the parameter closest to that model.
our soft start is universal for the motor, regardless of whether the motor has a capacitor or not.If your motor is working for a long time, the motor above 2000W needs to be equipped with a heat sink.
