- New ESP32 D1 mini, mini NodeMcu Lua WiFi board based on ESP-8266. ESP32 Wi-Fi and bluetooth development board compatible with WeMos D1 mini shields (plug and play).
- D1 Mini NodeMcu Lua 4M Bytes WLAN WiFi Internet Development Board Base on ESP8266, 100% Compatible with WeMos D1 Mini
- WIFI development board, 4M bytes. 5V 1A switching power supply (switching power supply) on board.
- Compact Design: The chipset that incorporates is the ESP32-WROOM-32 and a chipset for the CP2104 serial port with 4 megs of space for development.It has good wifi coverage, despite its small size.
- Compatibility: this internet development board is nicely can be programmed support OTA online; It has a similar pin layout to the D1 Mini ESP32, therefore pin-compatible with most accessories.
Feature:
Specifications: Power Supply
Voltage D1 Mini: 5V DC (4.5~ 6V) Operating
Current: ~80mA (Supply above 500mA) Logical
Voltage (Inputs/Outputs): 3.3V
SoC: ESP32 (ESP32-D0WDQ6)
CPU: Dual core Tensilica LX6 (32 bit) Clock; Frequency: 240MHz
SRAM: 520KB External Flash
Memory: 4MB Digital
Pins GPIO: 34 (including all peripherals)
UART: 2; SPI: 3; I2C: 2; Capacitive Touch Sensors: 10 SD
WCH CH340 USB to UART Bridge
ESP-WROOM-32 FCC certified Wi-Fi and bluetooth module
PCB-mounted antenna
Onboard Micro-USB connector (i.e., USB Micro-B)
Different than our ESP8266 D1 mini V2 and ESP8266 D1 mini pro, the ESP32 D1 mini carries the ESP32-WROOM-32 module while keeping the same form factor.
Interface:
Timers: 3 (16-bit) PWM Led: 16 Independent Channels (16-bit) ADC: 18CH (12-bit) DAC: 2 (8-bit) Wi-Fi, Protocol 802.11 b/g/n/e/i (802.11n up to 150 Mbps)
Wide Application
-Together with a growing set of expansion boards (shields), the WeMos family is a great solution for building projects quickly using both the ESP8266 and ESP32 SoC.
-ESP32/32S WIFI development bluetooth ESP8266 module CP2104
Package included:

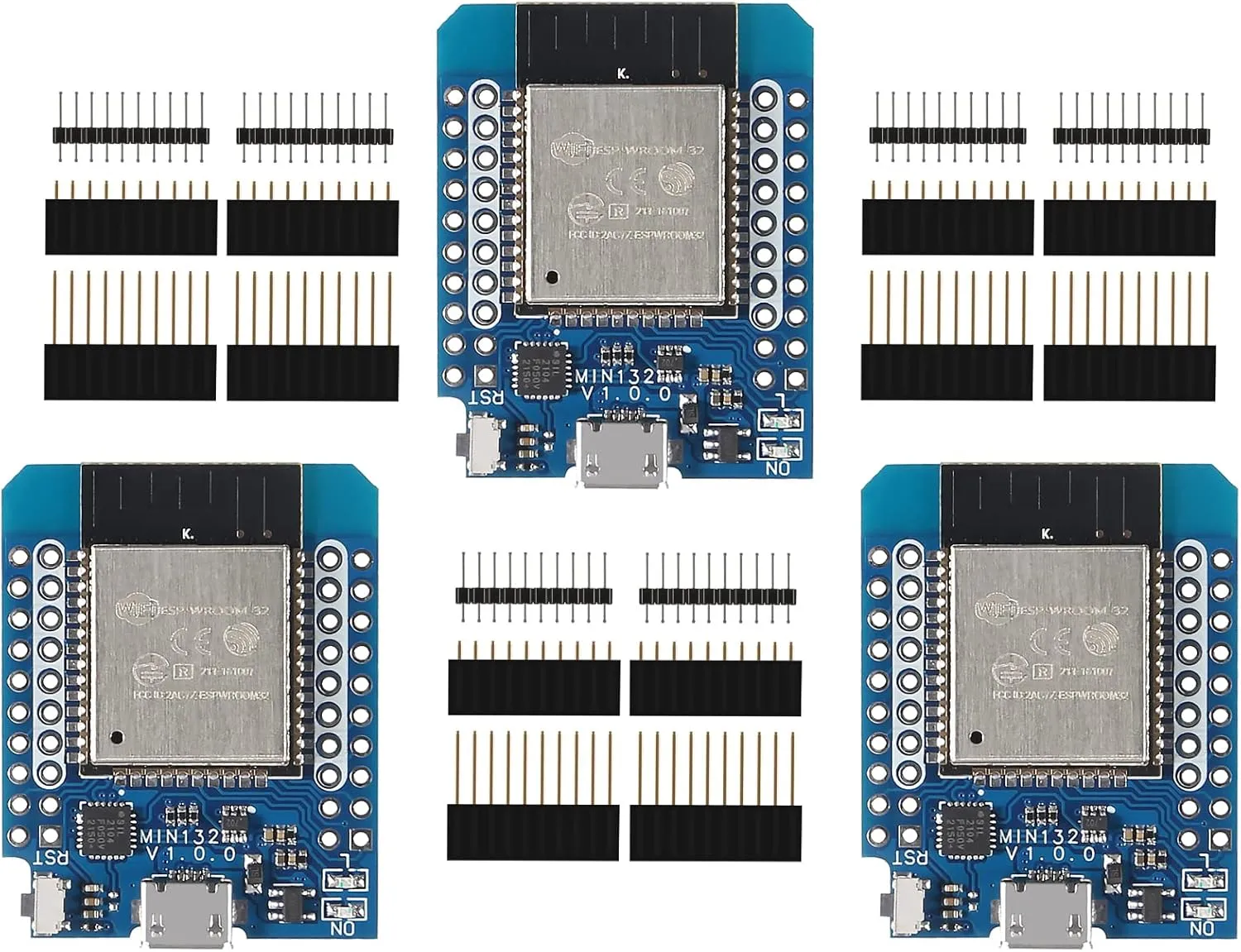

3 x Mini D1 ESP32 Module
