- Secure attachment to exterior walls: the self-tapping thermal spacer module ensures reliable installation of heavy objects, such as awnings and canopies, in soft and low-load insulation materials without damaging the thermal insulation
- Powerful mounting system: the TherMax consists of a special anchor rod made of galvanised steel, which self-tapping through the plaster into the insulation material, with a glass fibre reinforced cone that interrupts thermal bridges, threaded screws and anchor sleeves for fixing in perforated brick
- For numerous building materials: the mounting system is approved in combination with the injection mortars FIS EM Plus, FIS V, FIS SB and FIS Green for secure attachment in a variety of building materials, such as concrete, perforated brick, hollow block made of lightweight concrete and aerated concrete
- Areas of application: with a TherMax, usable lengths of 62 to 170 mm can be covered, making it ideal for thermally separate attachment of heavy loads, such as air conditioners, French balcony railings, satellite systems and much more. Suitable
- Box contents: 25 x TherMax 12 / 110 M12 made of stainless steel, 25 x sieve sleeves 20 x 130, 6 x bit, 6 x milling blade, 6 x assembly instructions in a practical craftsman case (item no. 91969), insulation dowels for high loads of fischer

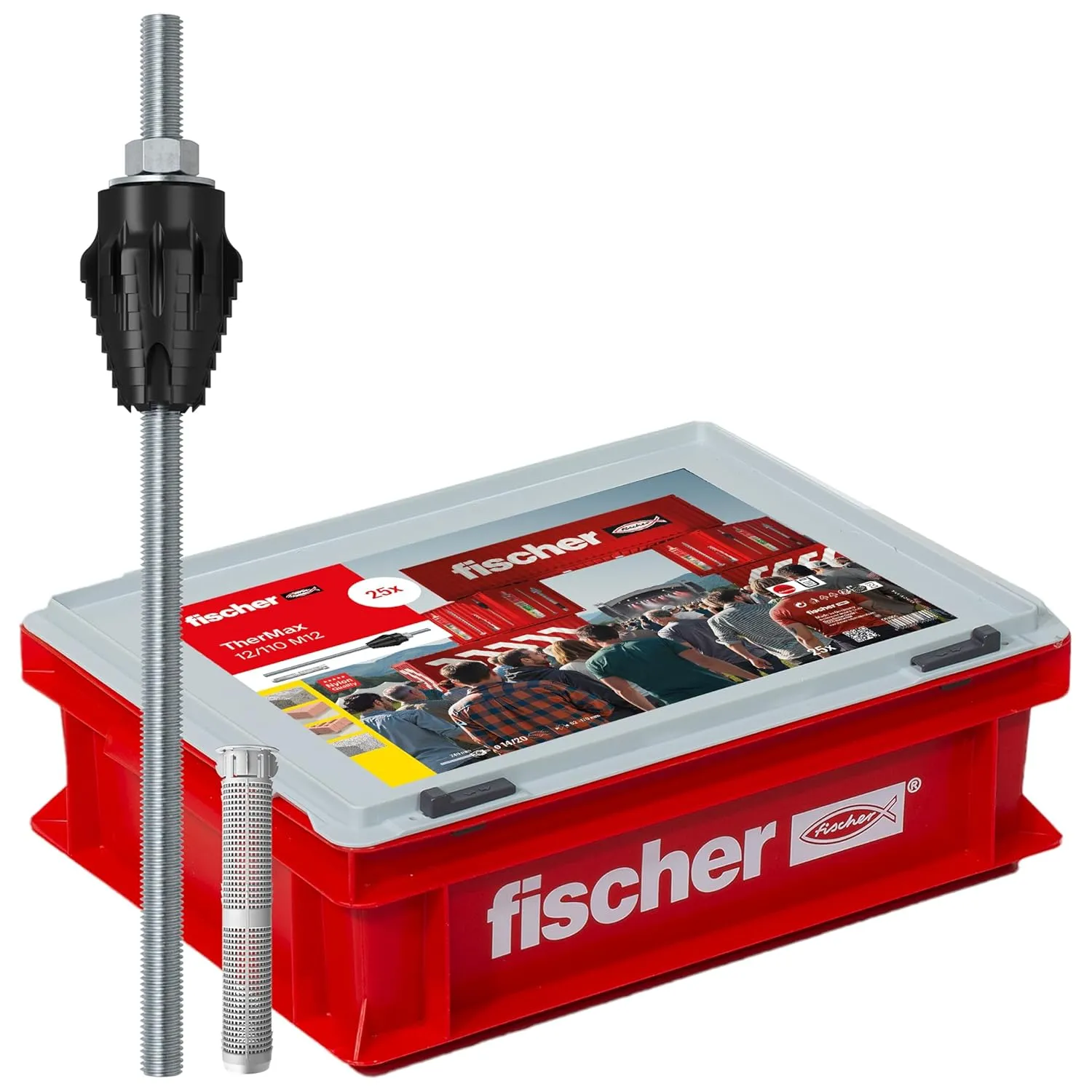

fischer TherMax 12 / 110 M12 spacer mounting system in a practical craft case:
The practical craft case - filled with 25 TherMax 12 / 110 M12 stainless steel. The thermal spacer mounting system from fischer is ideal for attaching high loads, such as awnings, canopies and satellite systems in thermal insulation composite systems, without damaging the thermal insulation of the facade. The mounting kit consists of a special anchor rod made of galvanised steel with a glass fibre reinforced cone, threaded screws and anchor sleeves. The self-drilling anchor rod drills through the plaster and mills into the insulation material. In combination with the injection mortars FIS EM Plus, FIS V, FIS SB and FIS Green, the TherMax system is approved for secure attachment in a variety of building materials, such as concrete, perforated brick, hollow block made of lightweight concrete and aerated concrete.
The TherMax spacer mounting system includes:
25 x TherMax 12 / 110 M12 galvanised.
25 x sieve sleeves 20 x 130.
6 x bits.
6 x milling blade.
6 x assembly instructions (English language not guaranteed).
About the company:
fischer mounting systems is the largest division of the Fischer group of companies. The specialist for secure and economical fixings and connections in construction has become one of the market leaders over the past 75 years. The product range ranges from chemical systems to steel anchors to plastic dowels. Whether heavy duty fixings in tunnel, bridge or power plant construction for the professional or wall and cavity dowels for the DIY enthusiast: fischer offers the right solution for every mounting problem.
- Product Dimensions : 15.75 x 11.81 x 5.31 inches; 17 Pounds
- Date First Available : January 21, 2020
- Manufacturer : fischerwerke GmbH &Co. KG
