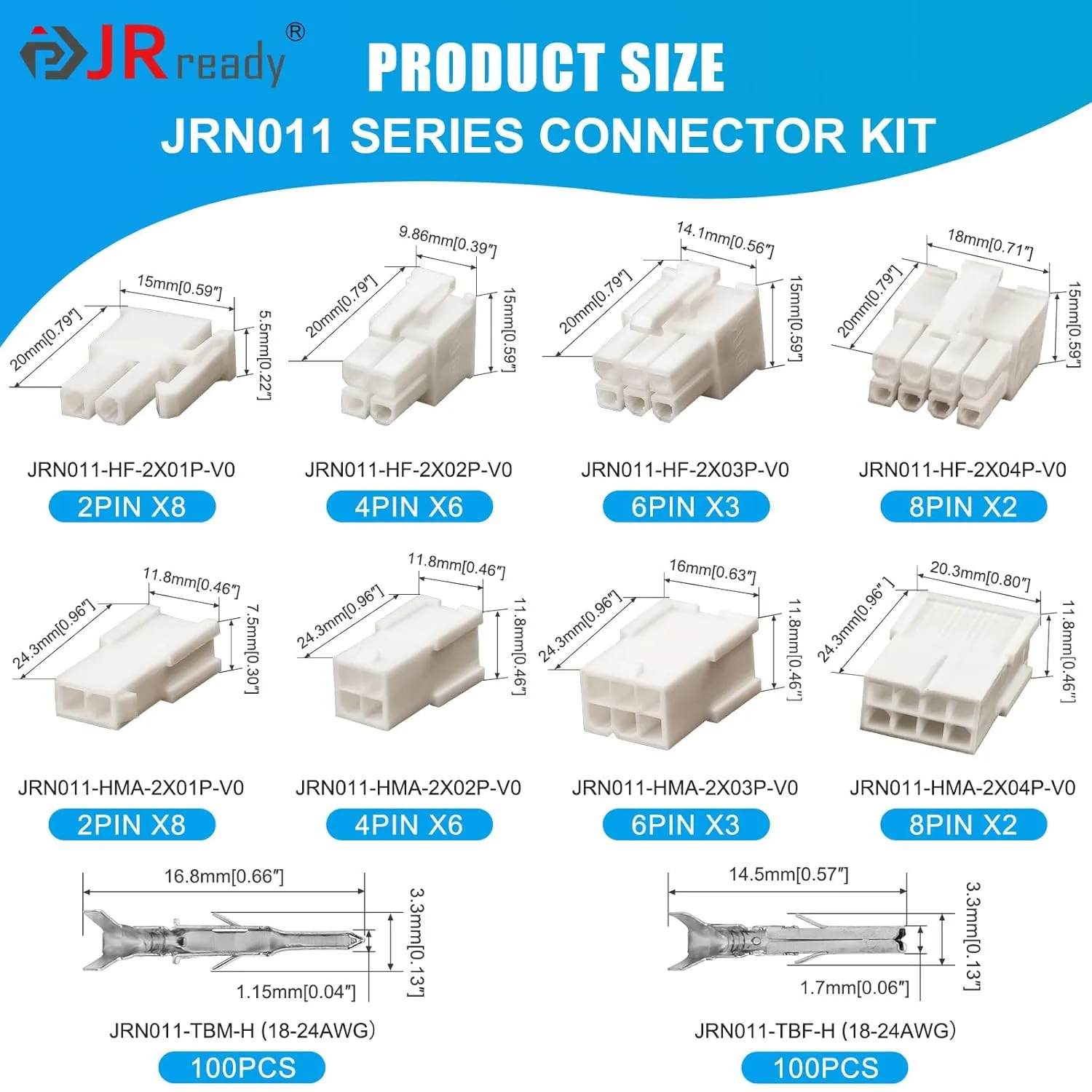

- JRN011 SERIES CONNECTOR: 4.2mm pitch connector is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to 105℃. Under environmental conditions of 23℃ ± 5℃, the temperature rise at 9A current is no more than 30℃. The connector can be mated and unmated over 50 times.
- CONNECTOR DESIGN: Connectors are ideal for power applications up to 9 amps per circuit, and feature fully isolated terminals, positive housing locks, low engagement forces, and polarized housings.The receptacle housing can be connected with a variety of plug options, including panel mount and free hanging plugs, or vertical and right angle headers.

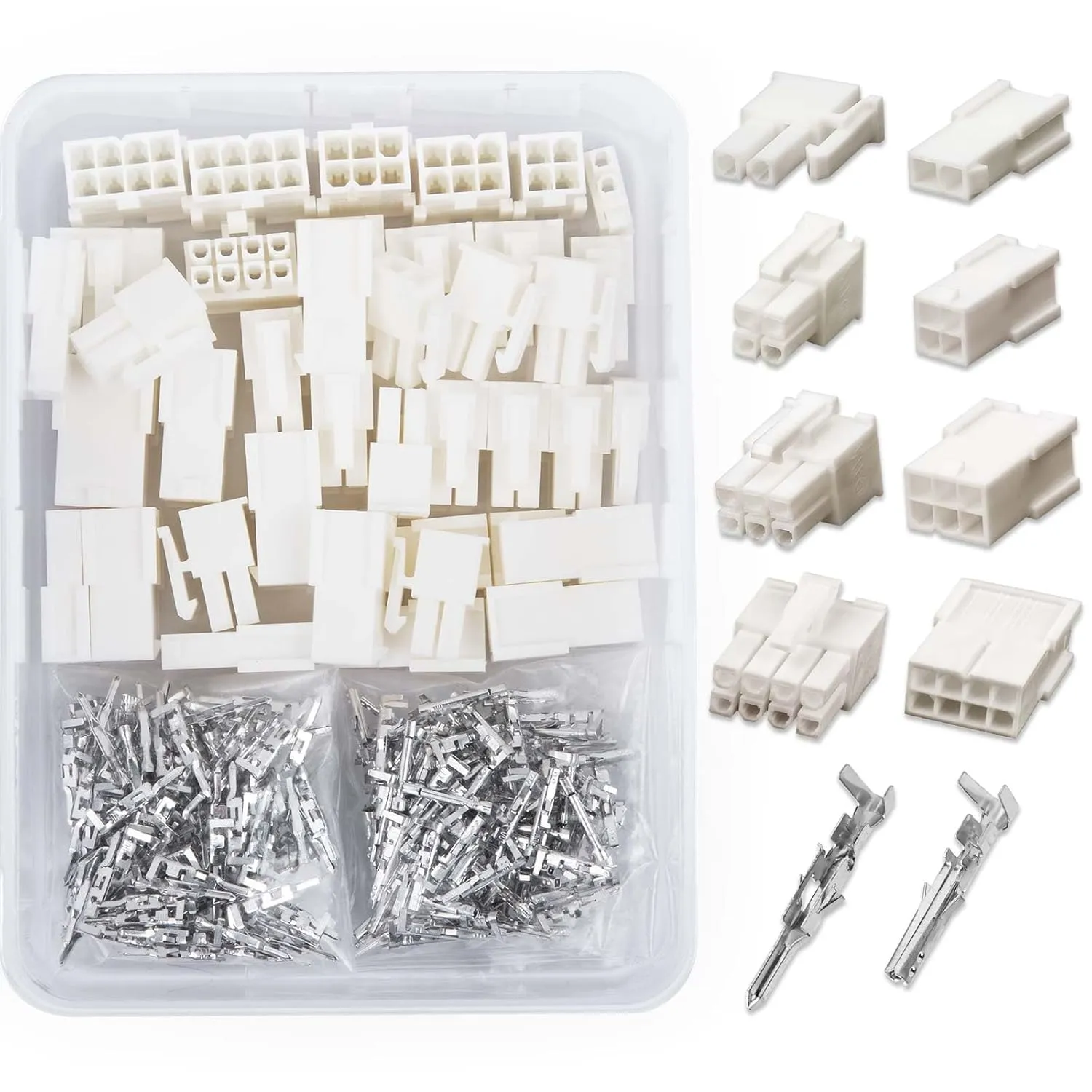

- CONTACTS DESIGN: The 18-24AWG contact is made of tin-plated brass. Crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing.The kit includes a large quantity of terminals for crimping practice or as spares, providing a great user experience, especially for beginners.

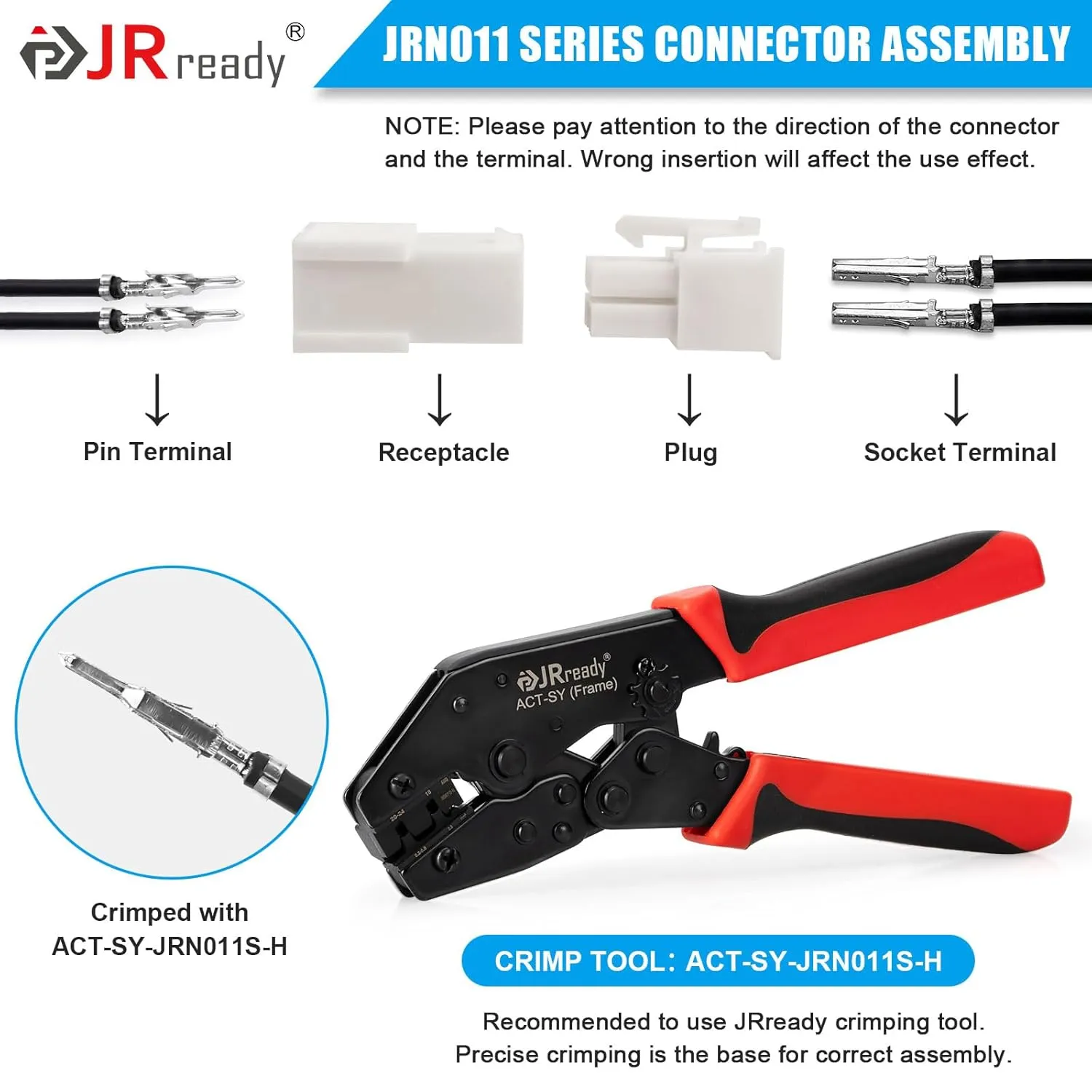

- JRREADY TOOL for JRN011 SERIES CONNECTOR: The crimper: ACT-SY-JRN011S-H. Pin removal tool：JRconDRK-D173P: enhanced for a superior grip with an enlarged size and protective cover; JRDDS-D173: high strength and hardness, magnetic deburring and polishing ,upgrades metal handle; DAP-D173: Hardened alloy steel and innovative push rod design. You can buy these tool at JRready Store.
- "COMPATIBLE with MOLEX MODELS: 2 pin connector-39-01-3029/39-01-2025; 4 pin connector- 39-01-3049/39-01-2045; 6 pin connector-39-01-3069/39-01-2065; 8 pin connector-39-01-3089/39-01-2085; Contacts pin: 39-00-0040/39-00-0041，socket: 39-00-0038/39-00-0039."
- WIDELY USED: Apply in wire to board and wire to wire combinations for industrial . The connectors widely used to household appliances, electrical maintenance, consumer electronics, network servers, industrial automation, data computing.
