- HIGH QUALITY CONSTRUCTION – Rugged die-cast aluminum housing with frosted glass globe to ensure even light distribution
- SAVE ENERGY & MONEY – Energy efficient LED technology allows you to save money on your energy bill.
- 50,000 HOURS OF LIGHT – Neutral 4000K color temp LEDs designed to provide 50,000 hours of light at 600 lumens
- STYLISH DESIGN – Ideal for factories, warehouses, or simply to bring style to retail, hospitality and residential locations
- HIGHEST INDUSTRY RATINGS – UL certified in the United States and Canada for Wet Locations that come equipped with silicone gaskets to seal out moisture and dust.
- AVAILABLE IN – Wall, ceiling, or pendant-mounted fixtures.

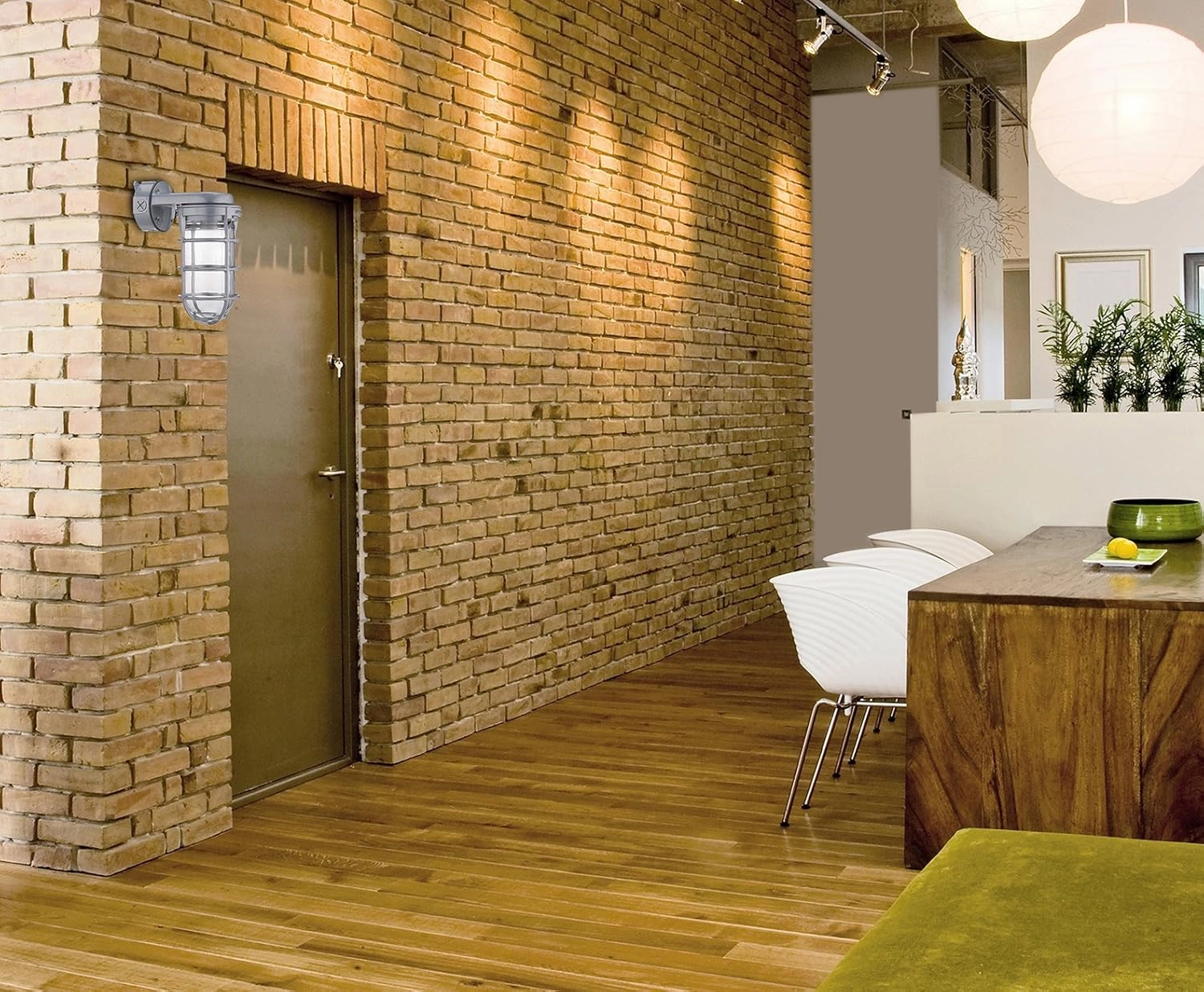

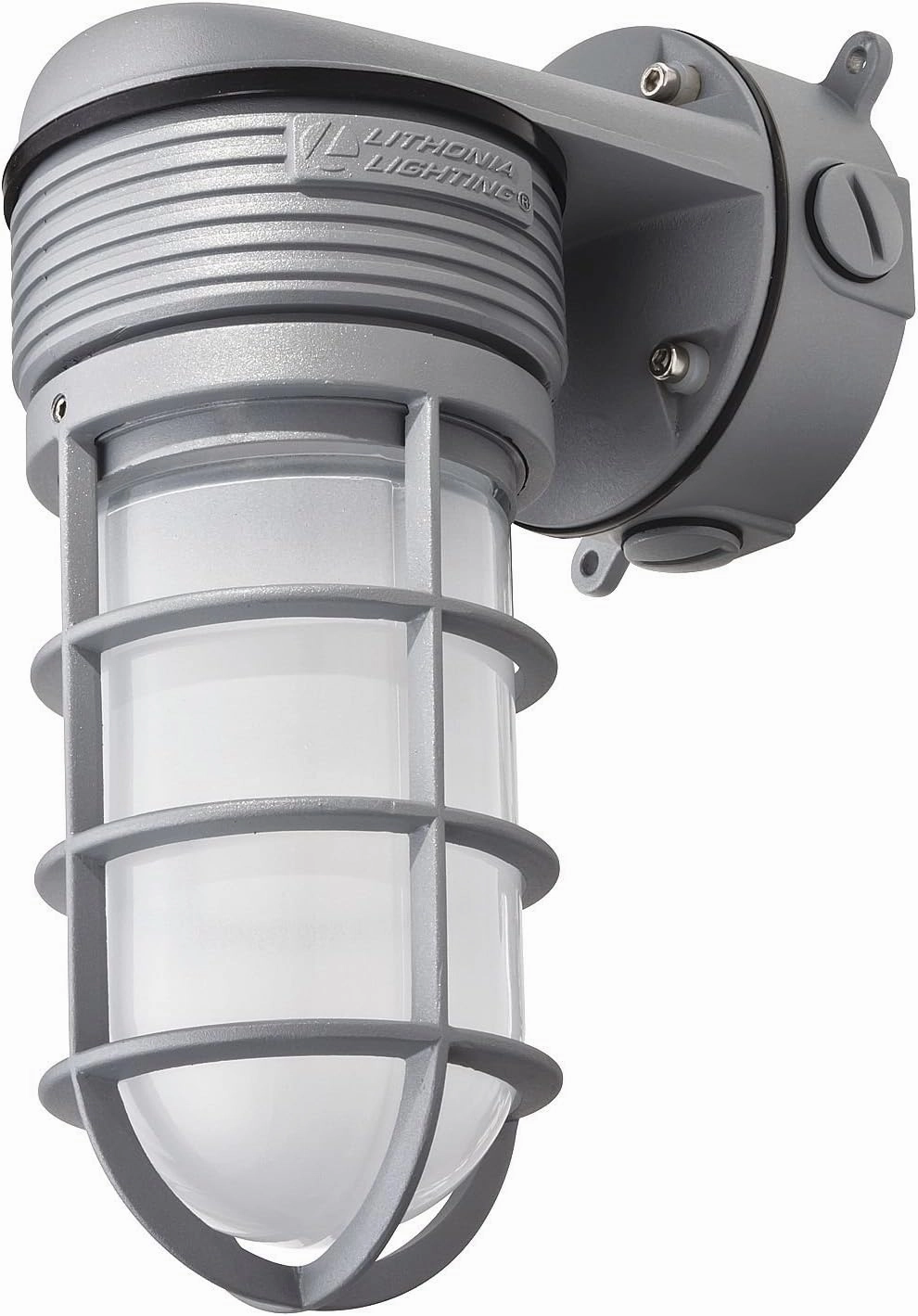

The Lithonia Lighting Vapor Tight Wall Mount fixture is designed to provide general lighting for locations the require wet location listing and durable aluminum for protection, but is becoming more and more popular in environments after that “loft” appeal.
Application Areas:
Ideal for new constructions, remodels or retrofit installations. Closets, attics, hallways, bathrooms, pantry, kitchens, basements, foyers, bedrooms, offices, utility work areas, garages, industrial loft, and other small areas.
Perfect when matched with Edison style filament bulbs to give your apartment, loft, restaurant or bar that stylish industrial or rustic lighting look you’ve seen around town! Use ¾ inch pipes with pendant mounted option.
Mounting Type:
Wall: includes all mounting parts necessary
Technical Specifications:
• Power: 15W
• Lumens: 600 LM
Emitting Color: 4000K (Bright White)
• Dimmable: No
• Incandescent Emitting Color: dependent on light bulb installed into fixture

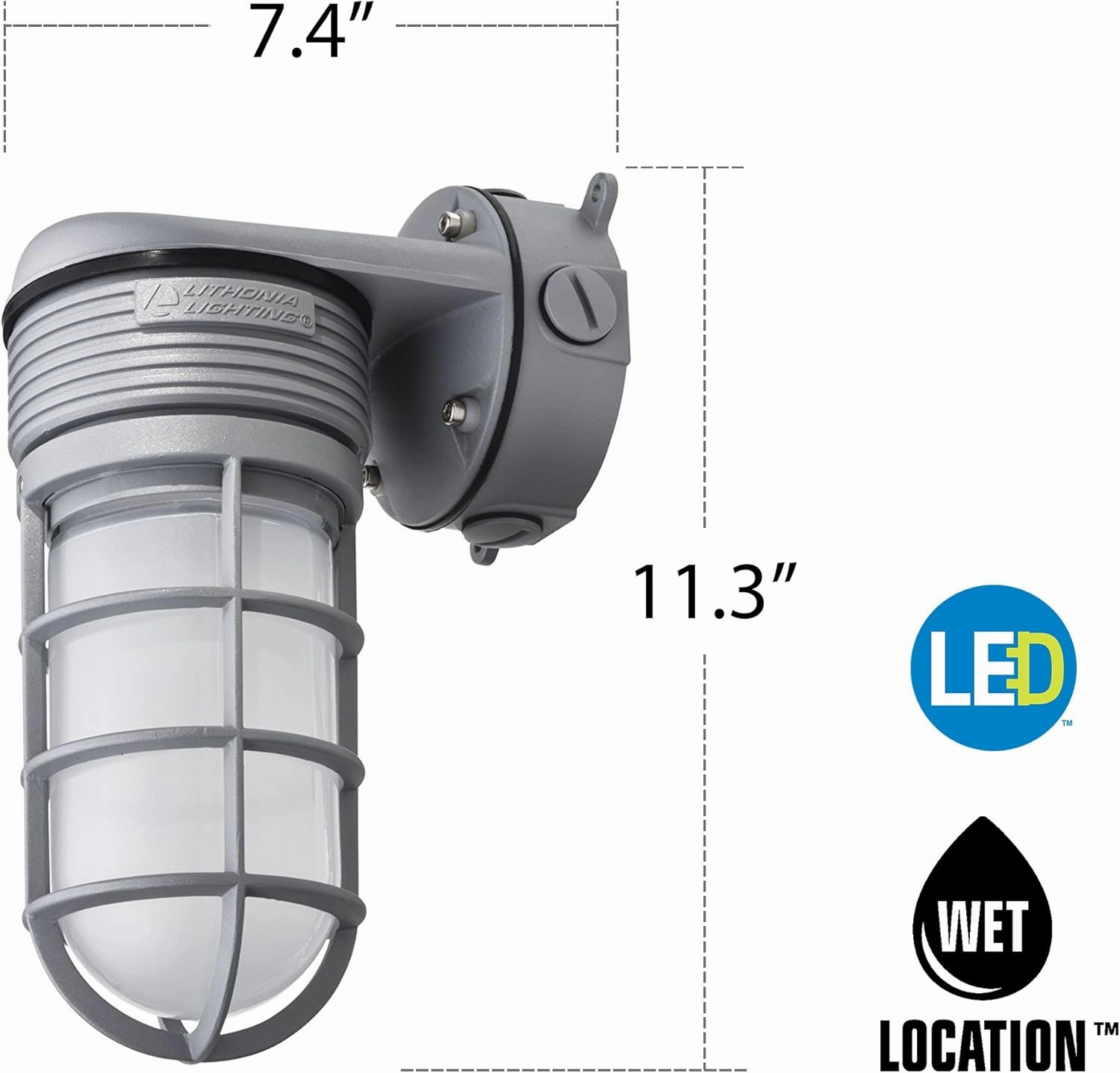

• Ceiling Mounted Dimension: 7 x 4.5 x 11.2 inches
• Light direction: General
• Average Life: 50,000 hours
• Warranty: 2 years – Limited
• Electrical: Fixture operates at 120 volts, 60Hz
• Junction Box: Included
• Housing includes ¾ inch threaded knockouts allow for side or top conduit entry
• Meets Highest Industry Standards: CSA listed in the USA and Canada and UL listed for Wet Locations in the USA and Canada
Which light colors work for me?
2700K: Used mostly in residential applications where warm light is desired.
3000K: Used in family homes, hotels, coffee shops and other warm and sweet environments.
4000K: Used in homes with a need of a bright white atmosphere.
Installation:
Wall Mounting
1. Attach the wall box to mounting surface. Pull leads to the box.
2. Make wiring connections described below.
3. Attach the fixture by installing the mounting screws in alternate sequence.
4. For a rain-tight seal, caulk all holes and gaps with silicone caulking compound.
