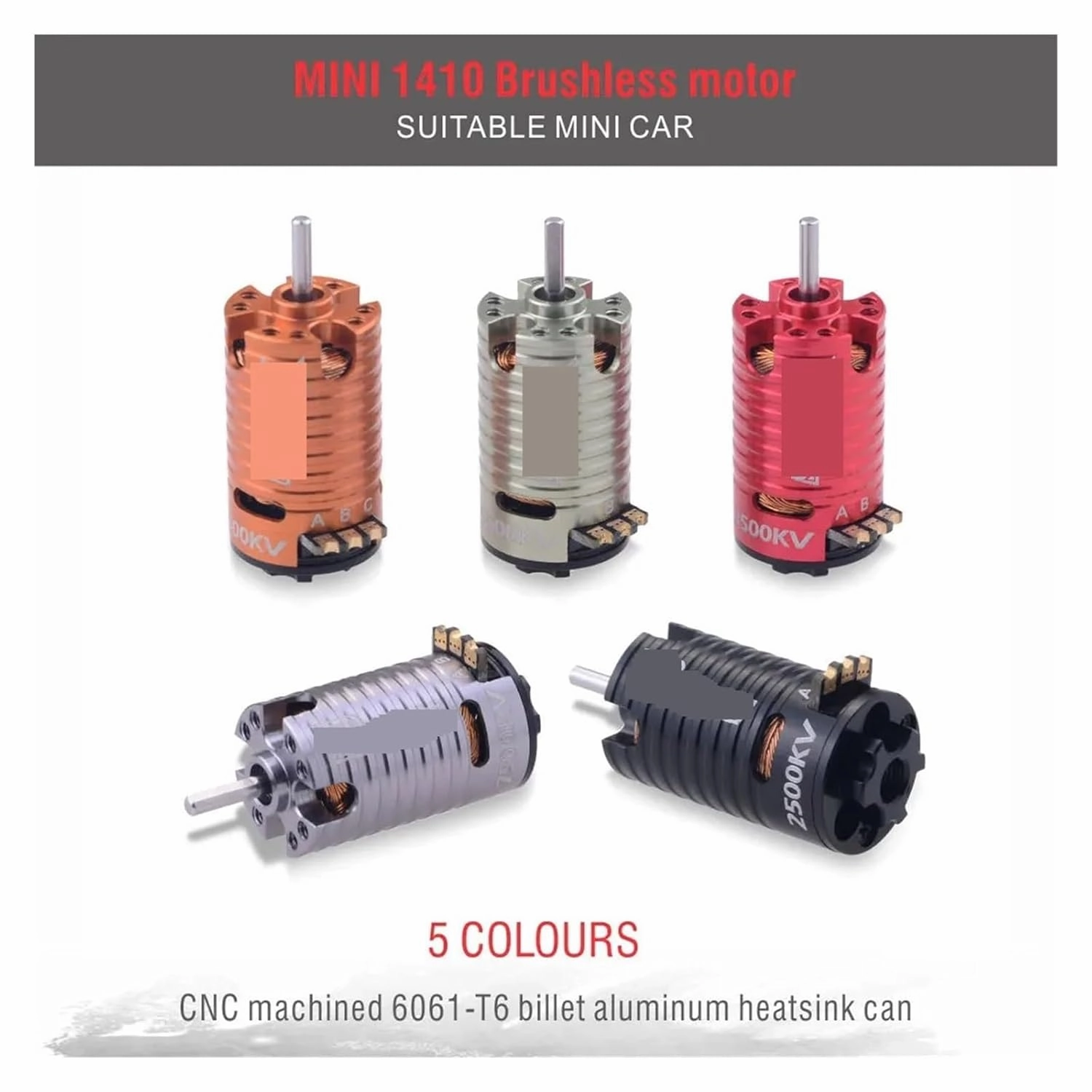

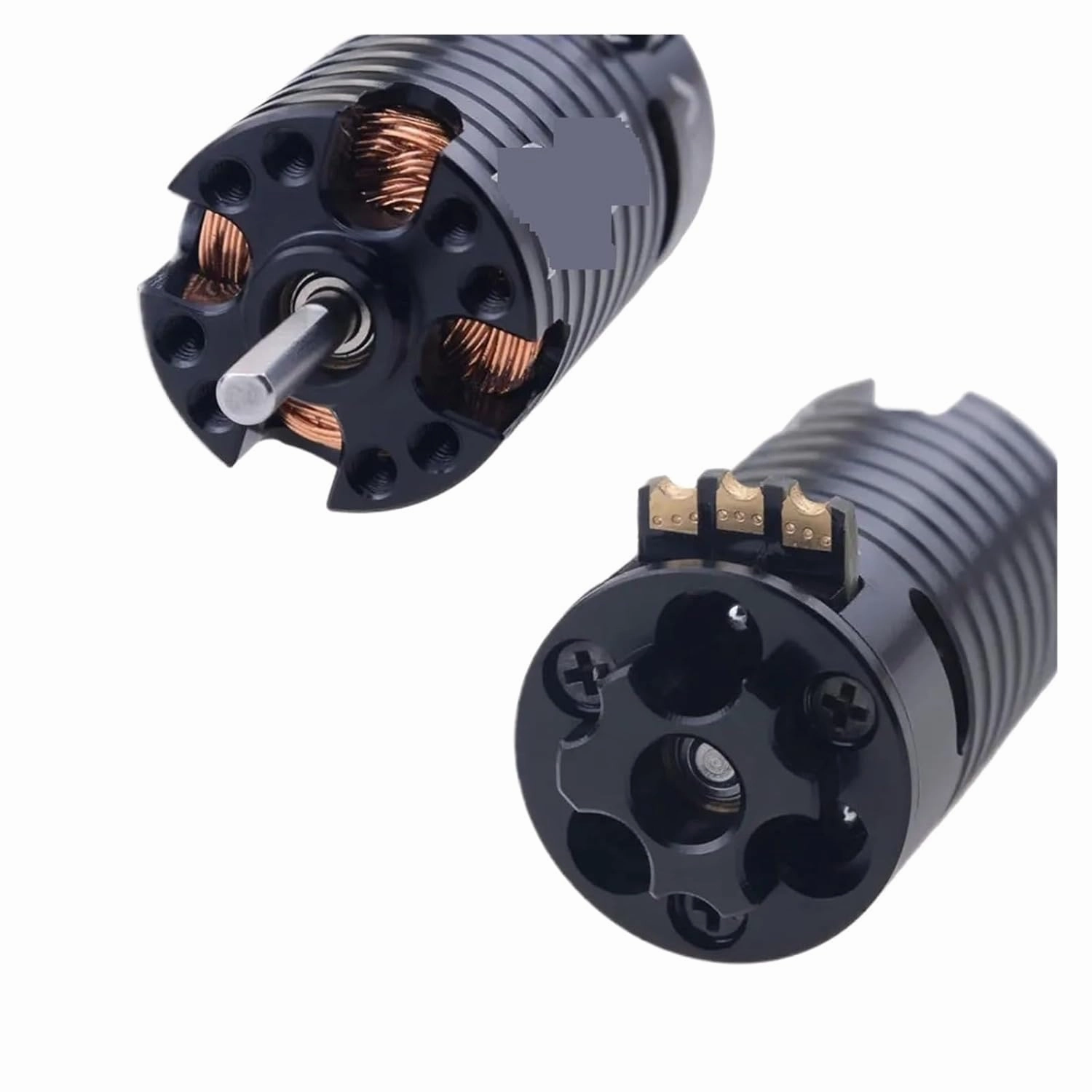

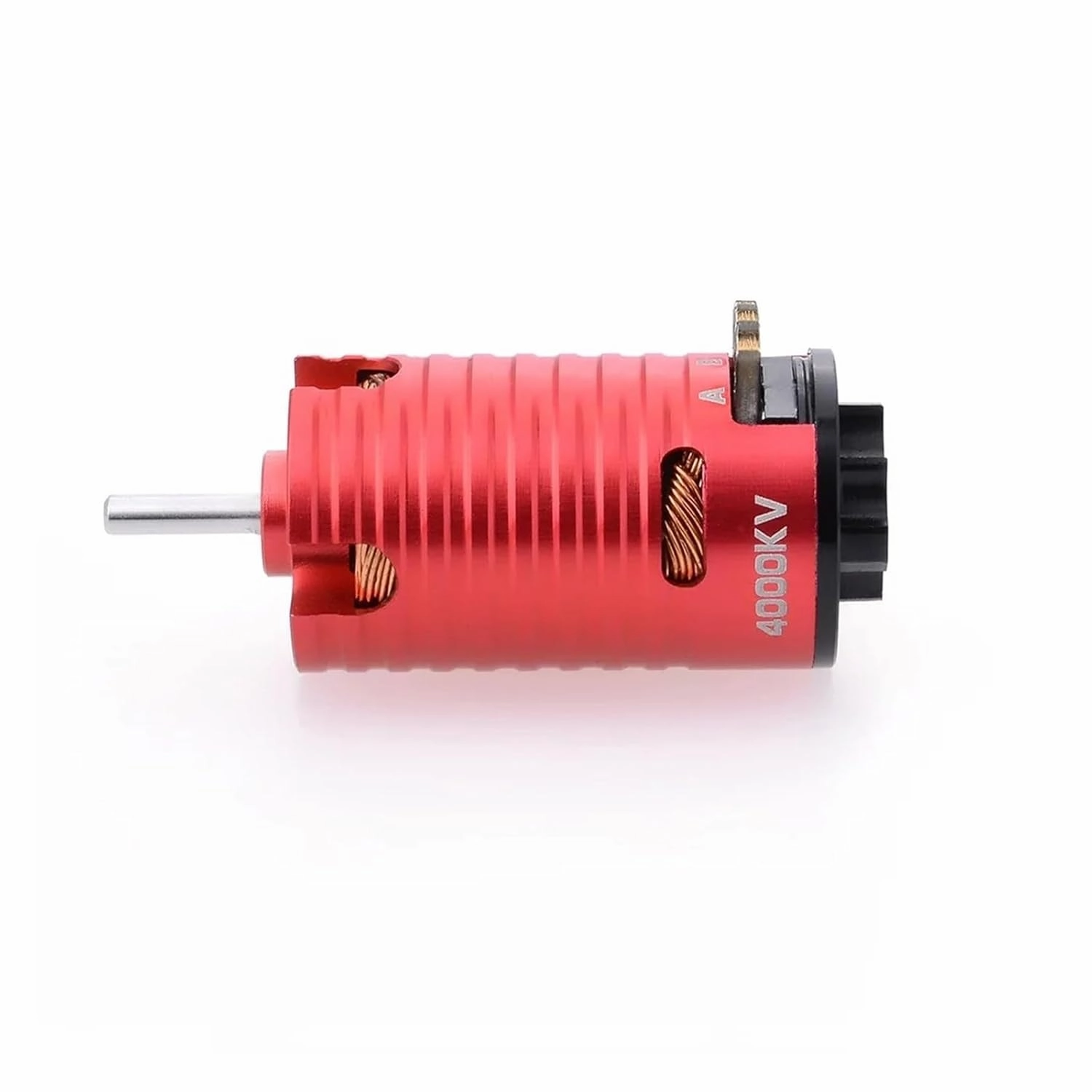

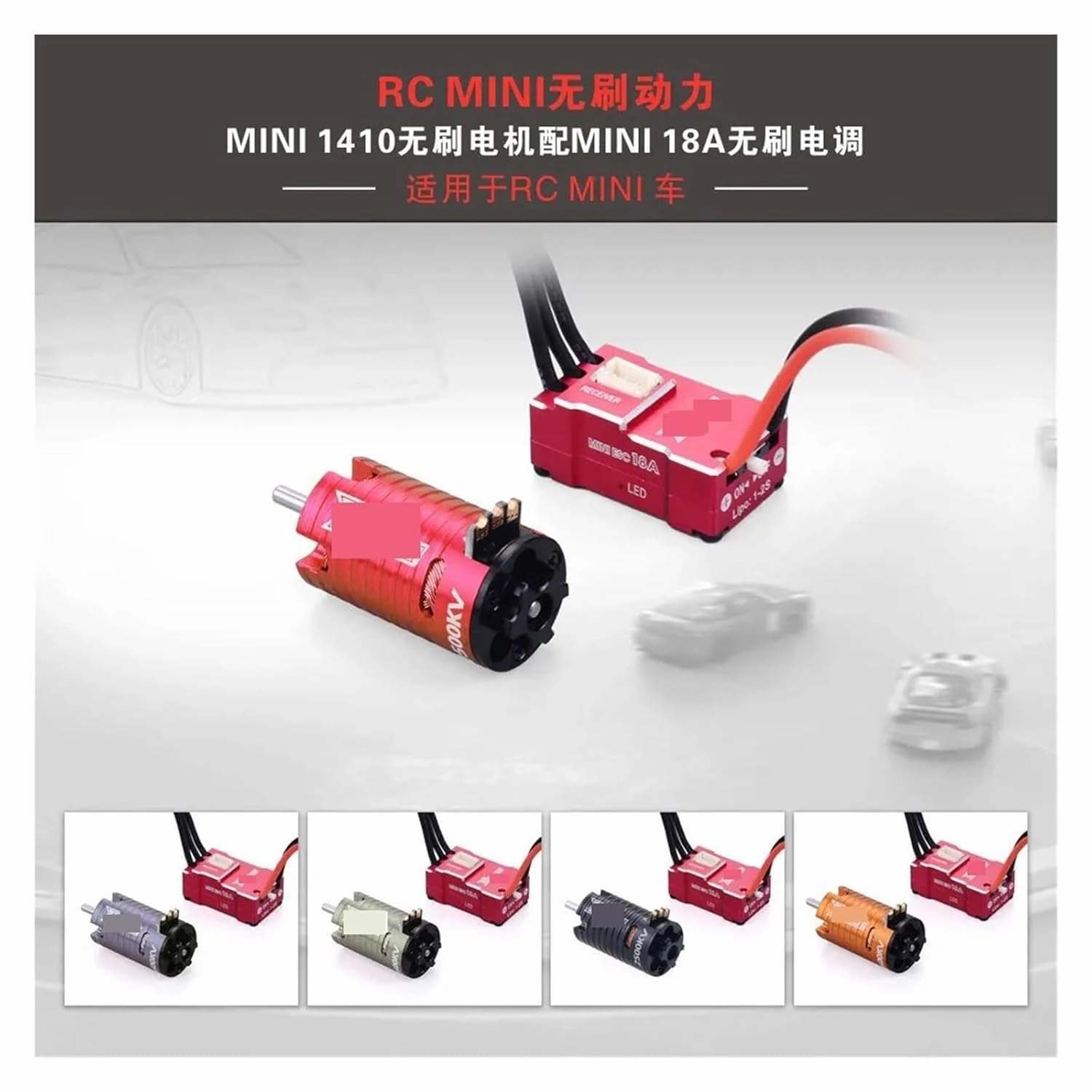

Launched the 1410 small brushless motor, also known as 1625MINI motor, suitable for 1/24, 1/22 and 1/20 MINI CAR, and also suitable for other small mosquito cars. CNC process, aviation aluminum, 0.2mm steel stator, providing better torque and power output, throttle output ultra-fine low speed more linear, operating temperature is also lower. The 1410 weighs 12.5 grams.
For kyosho
2 Pole 3 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit, fits all 1/24,1/28 brushless cars-multi-
mounting system for M2.0 screws
Precision balanced rotor, smoothness for best reliability
and maximum RPM
Stator - Super Thin (0.2mm) Laminations
Precision Engineered for Maximum Energy Conversion
Motor KV color correspondence table:
Black = 2500/3500/5500KV
Red = 3500KV
Green = 5500KV
Titanium color = 7500KV

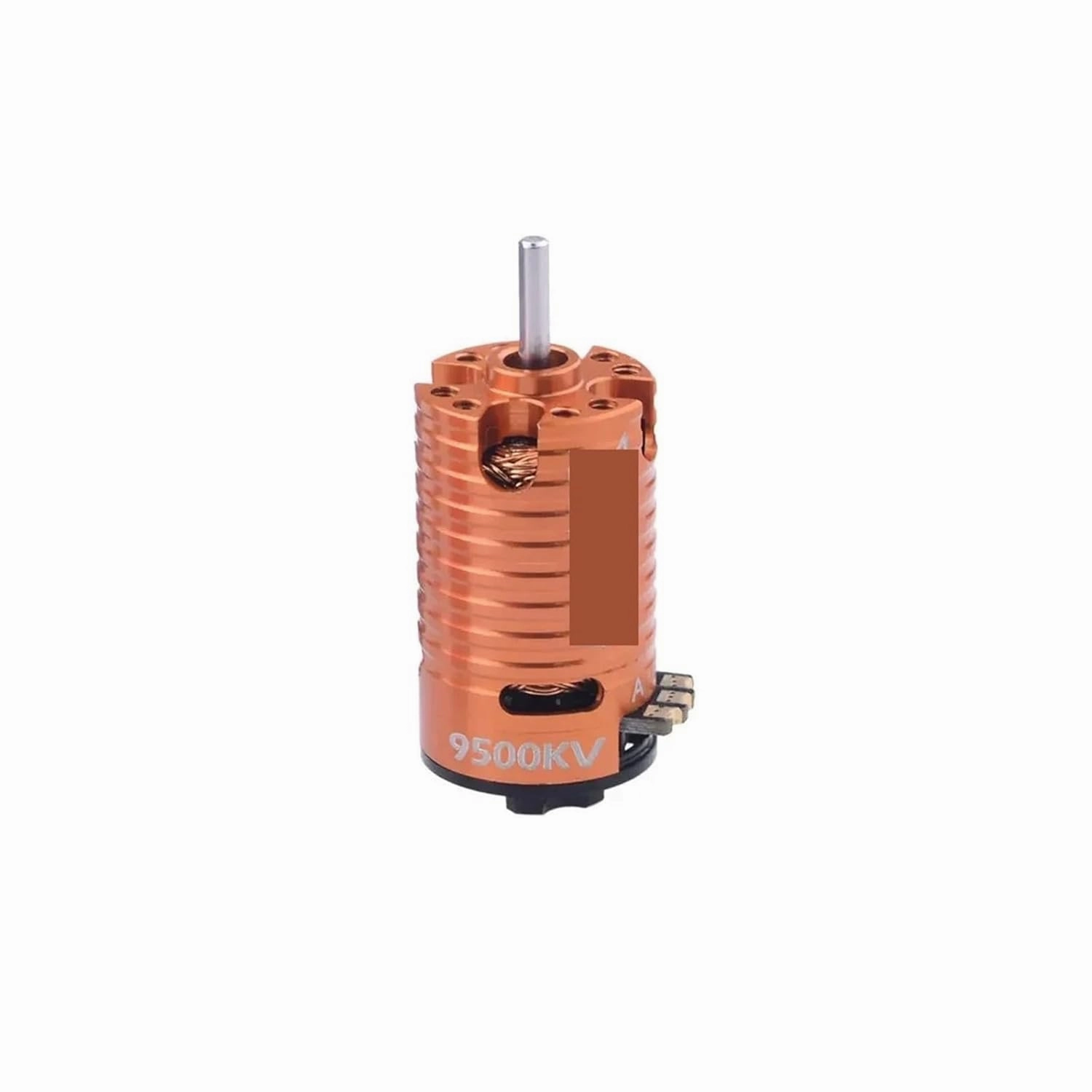

Orange = 9500KV
MINI1525 motor features:
The maximum power of the motor is 80 watts, and the power output efficiency is as high as 92%.
. Unique sensory, non-sensory dual compatibility mode start
Thickened gold PCB circuit board, soldered ESC wire, frame perfect wiring
. Industry standard inductive small interface 5PIN-0.8 terminal inductive wire connection
The slot full rate is extremely high, the resistance value is internal resistance, and high power output is obtained
.NSK bearings imported from Japan, running very smoothly at high speed
. Unique stator 0.2mm silicon steel sheet, up to 94% conversion efficiency
.2Pole ultra-compliant linear high-speed high-temperature 200 ° C rotor explosion-proof new magnetic material, 1EI/AIW (H) grade American MWS brand red high-temperature wire
.turboRPM60.000
==========
Hign-concerned Chemical : None
Is Electric : No battery
Quantity : 1 pcs
For Vehicle Type : Cars
RC Parts & Accs : Motor Components,Motors
Material : Metal
Origin : Mainland China
Certification : CE

• Product Dimensions ‏ : ‎ 1 x 1 x 1 inches; 1.76 ounces
• Date First Available ‏ : ‎ June 19, 2025
• Manufacturer ‏ : ‎ P98LJZQ
• Country of Origin ‏ : ‎ China
